Vector Addition



Tip-to-tail method of vector addition:

1. Translate the vectors and join them together in a chain such that the tip of one is attached to the tail of the next (tip-to-tail method).

2. The order of vectors in forming a "tip-to-tail" chain does not matter.

3. Draw a new arrow from the tail of the first arrow to the tip of the last, this is the resultant vector.

Although the vectors are joined "tip-to-tail" in different orders, the resultant (hollow arrow) is the same.

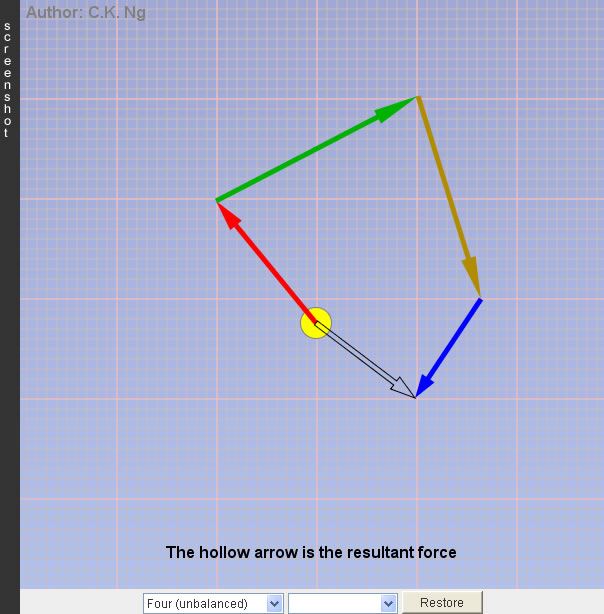

In this applet, up to 4 forces (vectors) can be created in a random manner. The tip of each force can be dragged to change its magnitude and direction.

When the button " Vector sum" is pressed, the forces will translate one by one automatically to form a "tip-to-tail" chain. The order of vectors in the joining is random.

Unless the forces are balanced, a black hollow arrow appears and blinks a few times after the completion of a "tip-to-tail" chain. This hollow arrow is the resultant force, which represents the overall physical effect of the individual forces.

Users are advised to repeat the "Vector sum" (press "Restore" each time to restitute) several times to "prove" the resulatnt is the same despite the order of arrows-joining in each case is different.

When the button "Motion' is pressed, the yellow object will go and accelerate (F = ma) under the influence of the resultant force.
